SWP-C Short Without Flex Type
Universal Coupling
Rigid universal joint coupling built for precision, endurance and maximum torque transmission — the first-choice solution for UK heavy industry.

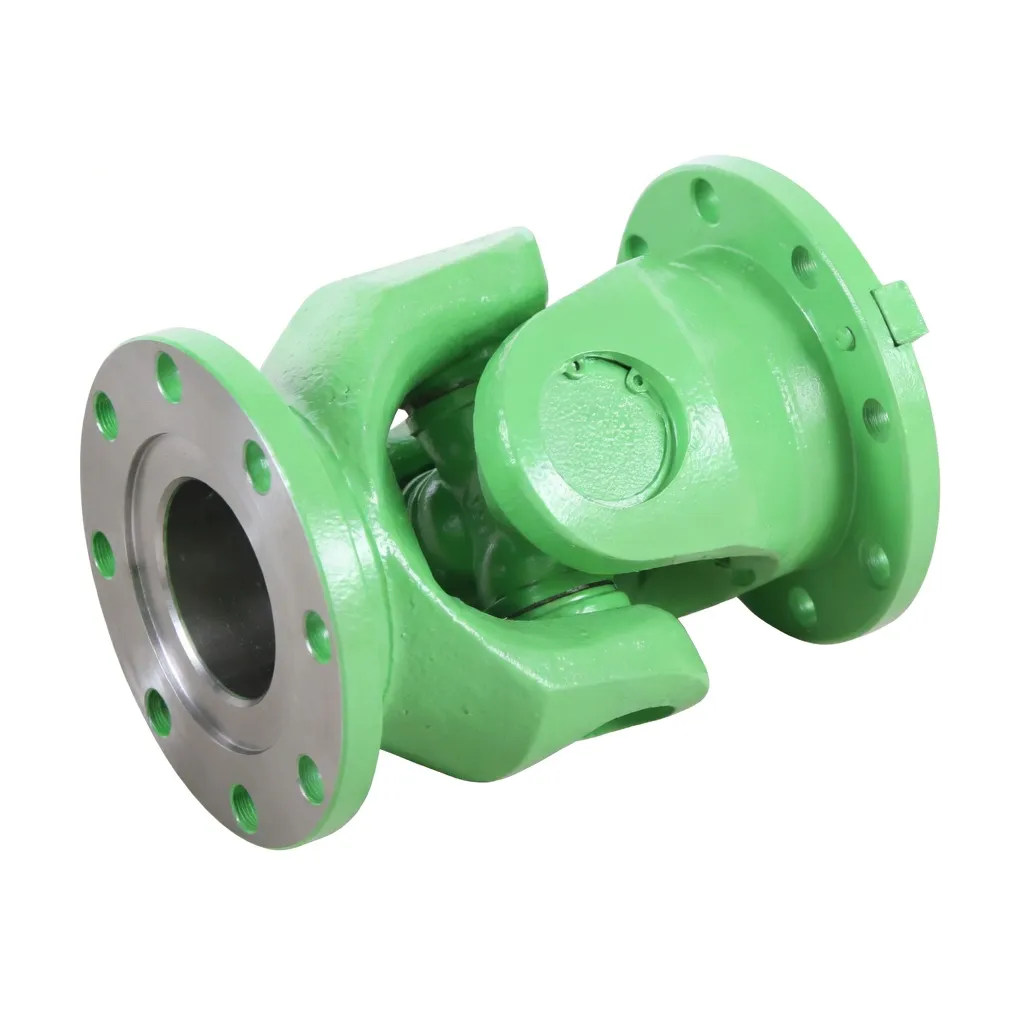

What Is the SWP-C Short Without Flex Type Universal Coupling?

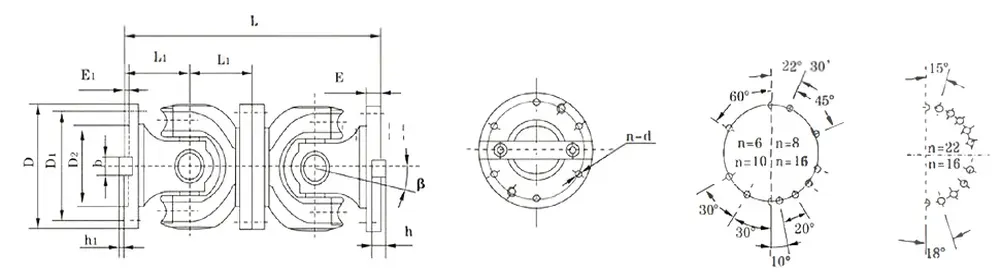

The SWP-C Short Without Flex Type Universal Coupling is a purpose-built rigid power transmission component developed for industrial drive systems where rotational accuracy cannot be compromised. Unlike flexible coupling designs that introduce a degree of shaft movement to absorb misalignment, the SWP-C coupling holds both shafts in a locked, non-compensating engagement — transmitting torque directly and without mechanical slippage. This makes it the go-to choice for precision-critical environments: CNC machining centres in the West Midlands, high-speed rolling mill drives in Sheffield, heavy overhead crane installations in Leeds, and automated packaging conveyors across Yorkshire. The coupling’s architecture consists of three yokes interconnected by two precision cross joints fitted with high-grade needle-roller bearings. This three-yoke, double-cross configuration spreads load across a wider mechanical footprint, increasing load rating while reducing bearing stress — a design advantage that translates into significantly longer service life under sustained cyclic operation. Each SWP-C unit accommodates a maximum shaft angle (β) of 10°, which handles realistic installation tolerances without compromising drive output. The nominal torque range begins at 16 kN·m for the SWP160C and extends to 1,250 kN·m for the SWP640C — a breadth of specification that makes the SWP-C series applicable to virtually the full range of medium and heavy industrial drive requirements found across UK manufacturing, energy, and materials handling sectors.

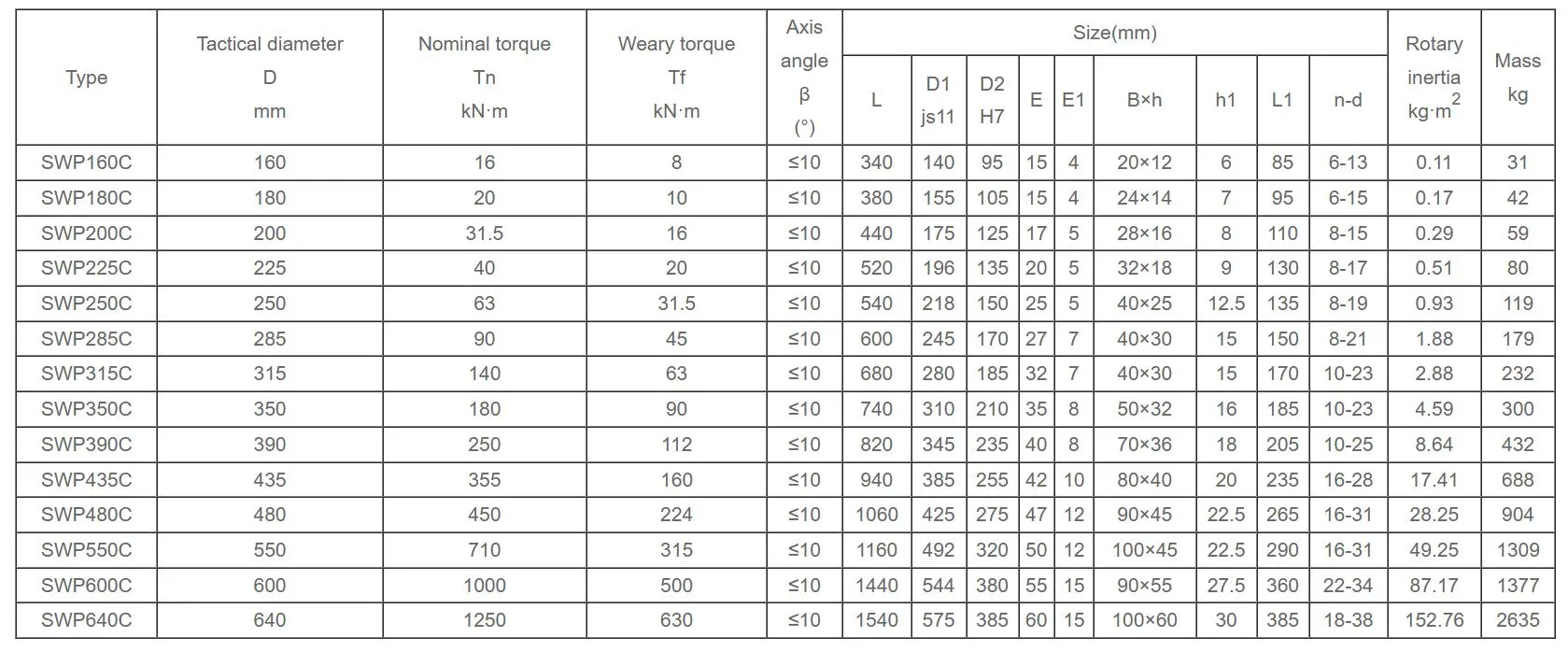

Key Technical & Material Performance Parameters
Why Specify the SWP-C Coupling for Your Drive System?
Four engineering advantages that set this coupling apart in demanding UK industrial environments.
Rigid Precision Transmission
As a non-flexible coupling, the SWP-C transmits every degree of rotational input directly to the output shaft, with zero compliance lag. This makes it indispensable for CNC spindle drives, positioning tables and rolling mill finishing stands where even micro-variance in speed leads to dimensional deviation or surface quality loss. The rigid joint geometry eliminates the resonance issues that affect rubber or disc-type flexible couplings at high rotational speeds, giving engineers far greater confidence in consistent performance across the full operating duty cycle.
High-Strength Alloy Construction
Every yoke in the SWP-C assembly is precision-forged from high-strength alloy steel, ensuring it can withstand shock loads and cyclic fatigue that would fracture lower-grade cast components. The cross joints are manufactured to tight bearing tolerances, keeping backlash minimal throughout the product’s service life. This combination of materials and manufacturing quality allows the SWP-C to operate reliably in harsh environments — from dusty quarry conveyors in Wales to high-humidity food processing halls in Lincolnshire — without rapid wear degradation.
Wide Torque Range, Compact Footprint
The SWP-C series spans 14 standard sizes from SWP160C to SWP640C, covering nominal torque values from 16 kN·m up to 1,250 kN·m. This broad range eliminates the need for engineers to source multiple coupling families for different machine sizes on the same production floor. Despite its robust torque capacity, the short-body design keeps axial installation length to a minimum — a distinct advantage on retro-fit projects where machinery space is constrained and shaft-centre distance cannot easily be modified.
Versatile Configuration Options
The SWP-C universal joint coupling is available with multiple yoke style options, bore tolerances (D2 to H7 specification), and keyway configurations (B×h) to match specific shaft standards. Optional surface treatments are available for corrosive or marine environments. For UK procurement teams managing a diverse machinery inventory, this configurability means the SWP-C can be adapted across multiple drive system types within a single standardised procurement order, simplifying spares management and reducing warehouse holding costs.
Where the SWP-C Universal Coupling Delivers Results
Real-world applications across UK and global industrial operations.
Machine Tools & CNC
The SWP-C coupling connects motor to spindle with no speed deviation, supporting tight dimensional tolerances in turning, milling and grinding operations. Widely specified in UK precision engineering workshops.
Steel Rolling & Metals
High-torque SWP-C units power drive trains in hot and cold rolling mills across Sheffield and Rotherham. The coupling’s rigid structure handles the severe impact loads characteristic of steel processing without fatigue failure.
Conveyors & Material Handling
Drive shafts in belt conveyor systems benefit from the SWP-C’s constant-speed output, keeping belt tension and tracking stable — crucial for aggregates, mining and logistics operations across England and Wales.
Cranes & Hoisting
Overhead cranes and jib hoists use the SWP-C to link hoist motors to drum drives. The rigid connection ensures lift speed is exactly matched to motor output — a safety-critical requirement for lifting operations in ports, steelworks and construction.
Wind Turbines & Energy
Connecting turbine shafts to generator inputs in onshore wind installations, the SWP-C coupling contributes to efficient, low-maintenance power generation — a growing application as the UK expands its renewable energy infrastructure.
Customer Success: SWP-C Coupling in Action
How UK and European industrial companies achieved measurable improvements with the SWP-C series.
Steel Rolling Mill · Drive Train Upgrade
Bradfield Steel Products — Drive Coupling Upgrade on 4-Stand Continuous Mill
Bradfield Steel Products, a structural steel processor operating a four-stand continuous rolling mill in Sheffield, faced persistent coupling failures on their intermediate drive stands. The flexible couplings in use were transmitting vibration back through the drive train, causing premature gearbox wear and unplanned stoppages averaging 14 hours per month. Their maintenance engineer evaluated the SWP-C Short Without Flex Type Universal Coupling as a direct replacement for stands 2 and 3, selecting SWP315C units rated at 140 kN·m nominal torque. After installation, unplanned downtime attributable to coupling failure dropped to zero over the following six months. The rigid transmission characteristic of the SWP-C also eliminated the resonance-induced vibration that had been the root cause of gearbox damage. The projected cost saving in reduced maintenance and gearbox replacement exceeded the initial procurement investment within the first quarter of operation. The site has since standardised on the SWP-C series across all four mill stands.
“We’ve been specifying SWP-C couplings on our aggregate conveyor drives for three years now. The zero-maintenance interval and consistent torque output have made a real difference to our operational costs at our North Yorkshire quarry site.”
Aggregate & Quarrying — North Yorkshire, England
“Our CNC machining centre upgrade required a coupling that would give us repeatable spindle accuracy under heavy interrupted cuts. The SWP-C delivered exactly that. Highly recommend for precision machine tool applications in the UK market.”
Aerospace Component Machining — Birmingham, England
“We sourced SWP-C couplings for our new automated packing line at our Lincolnshire facility. The lead time was excellent and the technical support helped us select the right bore configuration. The line has been running without a single coupling issue since commissioning.”
Food Processing & Packaging — Lincolnshire, England
Custom SWP-C Coupling Solutions — Tailored to Your Specification
At Ever Power Coupling, we go beyond supplying standard catalogue sizes. Our engineering team works directly with UK procurement managers and plant engineers to develop customised SWP-C coupling configurations matched to non-standard shaft diameters, bore tolerances, keyway specifications, and installation length requirements. For applications in corrosive environments — offshore installations, chemical processing plants, coastal wind farms — we offer specialist coating packages and stainless steel cross joint options. Clients operating at extremes of the torque range can request intermediate sizes not listed in the standard catalogue, and we can advise on material upgrades for cyclic shock-load applications. Our factory team carries out full dimensional inspection and load testing on custom orders before shipment, providing certification documentation that satisfies UK procurement and quality management standards. Every custom SWP-C order is supported by full dimensional drawings and material certificates on request.
Reply within 24 hours · [email protected]
Frequently Asked Questions
Common questions from UK engineers and procurement teams about the SWP-C coupling.
Ready to specify the right SWP-C coupling for your UK operation? Our technical team is available to advise on size selection, custom bores and delivery to any UK site.
