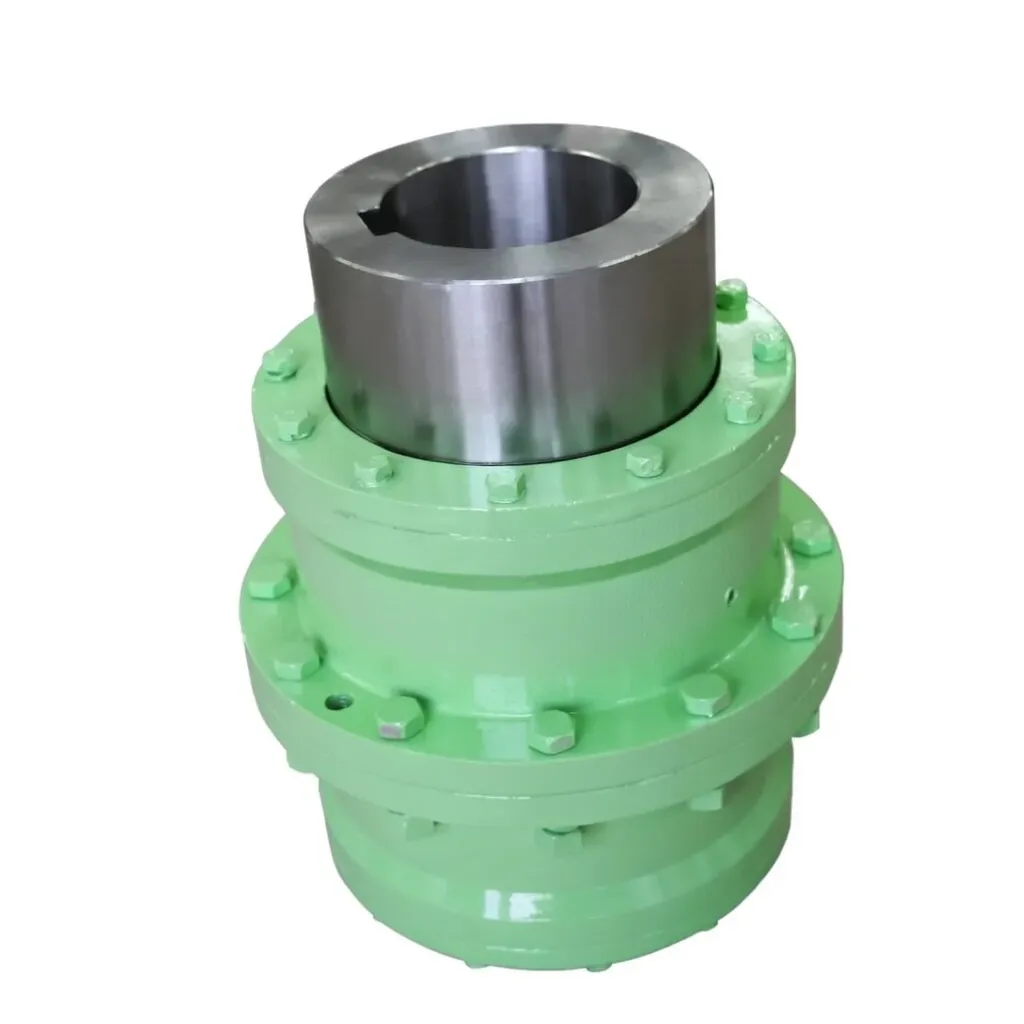

GIICL Series Gear Coupling

Live Misalignment Absorption

The crowned drum tooth geometry continuously redistributes contact stress as angular offset fluctuates during operation. This prevents edge loading — the leading cause of premature gear tooth fatigue — and cuts unplanned downtime on critical production lines across UK manufacturing plants.

Broad Torque Range — One Product Family

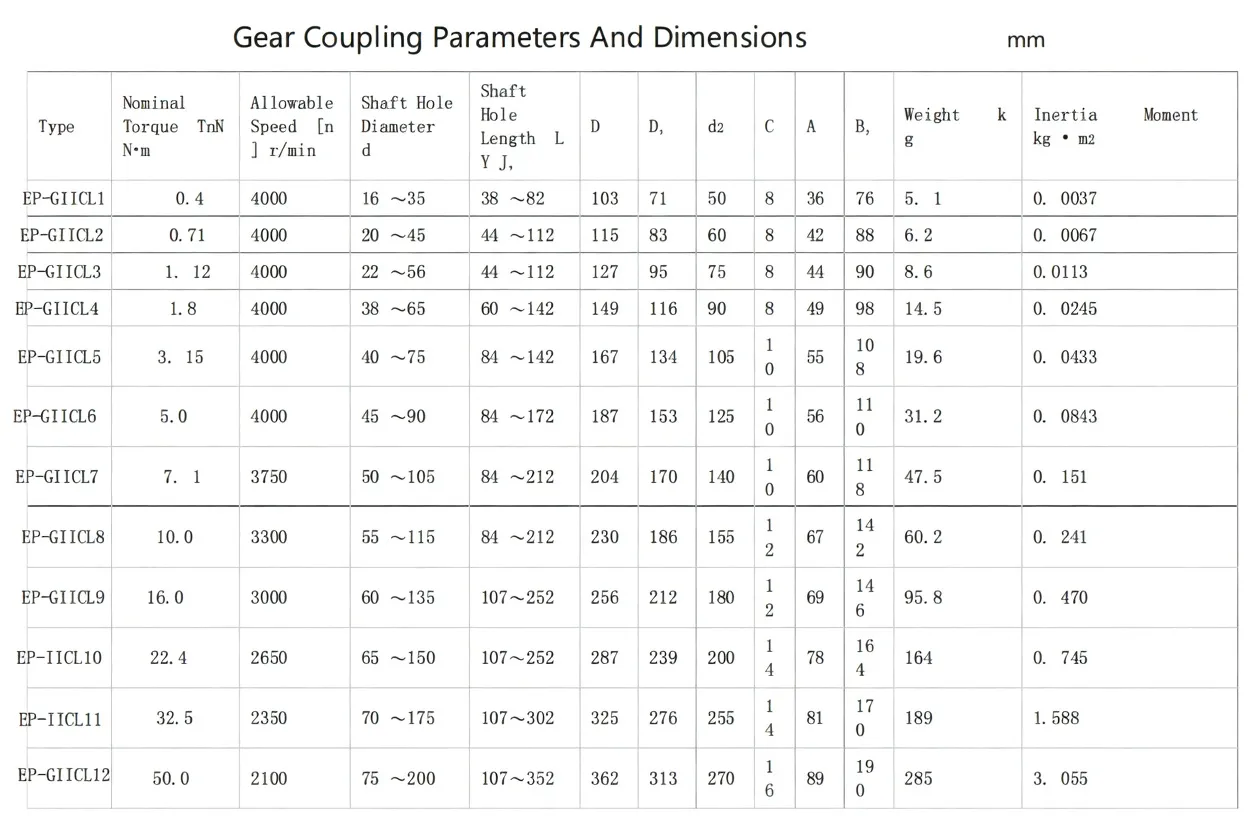

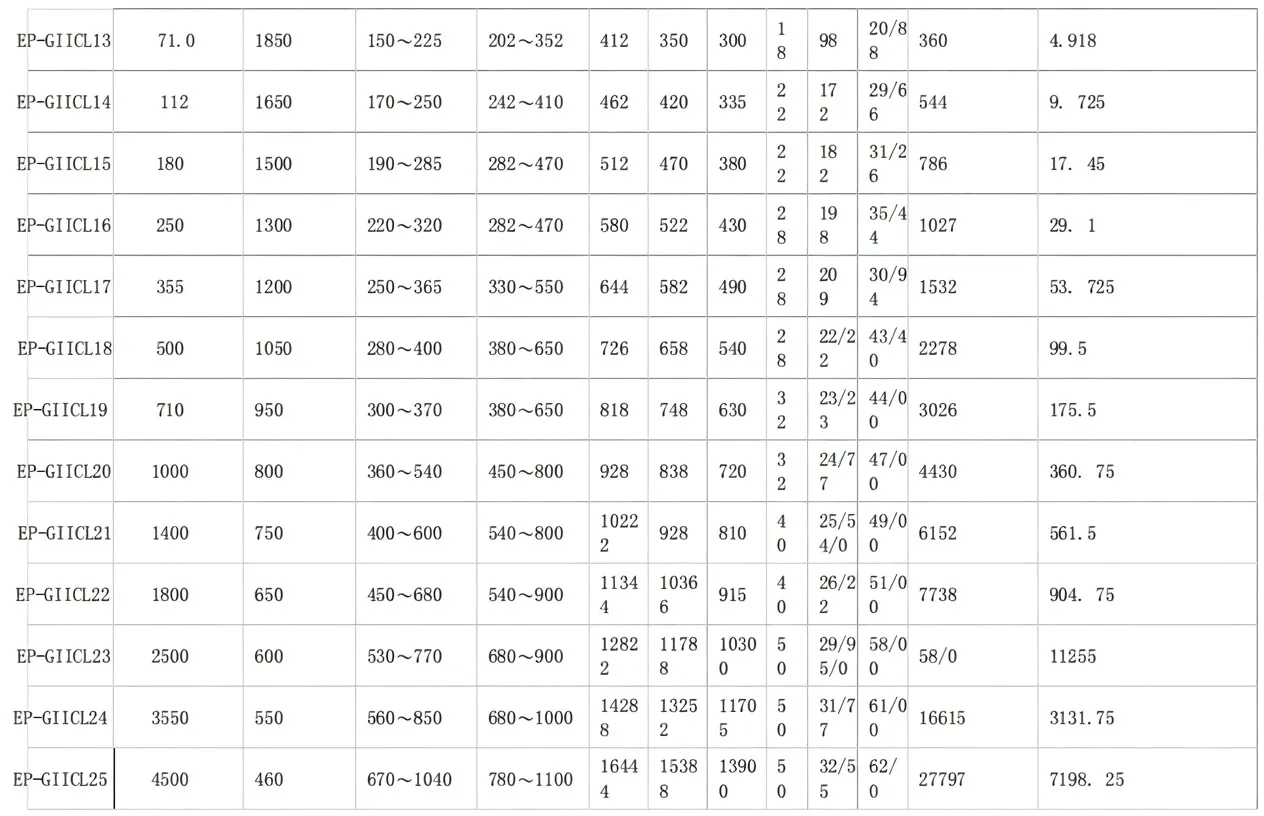

Specifying across a single product family from 0.4 kN·m up to 4500 kN·m eliminates the supplier complexity of mixing multiple coupling types. Whether the application is a small conveyor head drive or a heavy rolling-mill main drive, the GIICL series delivers consistent engineering logic and interchangeable spares philosophy.

Wide Temperature Resilience

Rated from -20 °C to +80 °C, the drum gear coupling performs through British winter shutdowns and sustained summer production runs alike. The grease-retained tooth engagement retains lubrication film across this range, avoiding the film breakdown that causes fretting in jaw or disc couplings under thermal cycling.

Surface Hardening Options

Nitriding and surface quenching treatments are available by contractual agreement, raising the tooth surface hardness to levels appropriate for high-cycle, high-load applications such as mine hoists, ship deck machinery, and steel processing lines. This extends tooth life significantly beyond untreated carbon steel alternatives while retaining a tough core beneath the hardened layer.

J-Type Bore Optimisation

The manufacturer recommends J-type (cylindrical with keyway) bore selection because it delivers the best balance between torque transmission capacity and ease of on-site shaft withdrawal during maintenance. For UK plant engineers who must service drives in constrained maintenance windows, this translates directly into faster turnaround and lower labour cost per shutdown.

ISO 9001 Quality Assurance

Every drum gear coupling is manufactured within an ISO 9001 certified quality management framework. Full dimensional inspection reports, material certifications, and hardness test records are available for procurement teams requiring documented quality evidence — a common requirement for UK Oil & Gas, Nuclear, and Aerospace supply chains.

Operating Principle

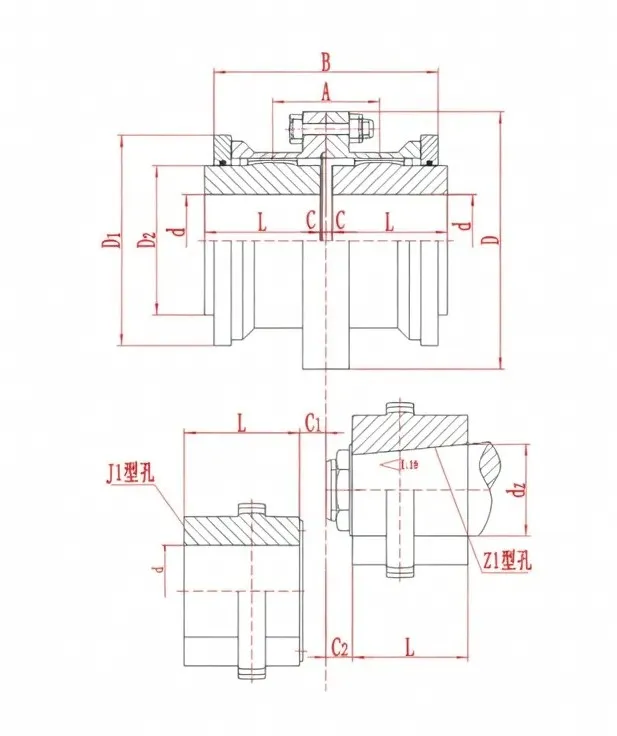

Torque passes from the driving shaft through an inner hub — machined with external drum teeth — into an outer sleeve with matching internal teeth. The barrel-shaped crown on each tooth means contact shifts gracefully along the tooth face as the shafts deviate in angle, rather than concentrating at one edge and gouging the tooth flank. This kinematic self-correction happens passively, requiring no sensors, actuators, or active control. The tooth mesh is bathed in grease retained by labyrinth-sealed end caps, keeping wear negligible over the coupling service life. Unlike flexible disc or elastomeric element couplings, there is no non-metallic component that degrades with age or temperature cycling, making the gear-type coupling inherently long-lived in demanding environments.

Material Selection

The inner hub and outer sleeve are precision-machined from medium-carbon alloy steel, selected for its balance of tensile strength, toughness, and machinability. For the most demanding torque cycles, the tooth flanks and root areas undergo gas nitriding or induction surface quenching, producing a hard martensitic surface layer (typically 55–62 HRC) over a ductile core that resists impact loading. Bolt holes and flanges are finished to close tolerances to eliminate fretting under cyclic tightening loads. The labyrinth seal components are manufactured from wear-resistant engineering polymer, compatible with standard lithium-based grease lubricants used across UK maintenance departments. All materials carry traceable mill certifications to satisfy UK procurement audit requirements.

Typical Application Scenarios

Across the United Kingdom, the EP-GIICL drum gear coupling is routinely found connecting induction motors to gearboxes on steel rolling mills, paper machine drives, mining conveyor head drives, marine deck winches, and water utility pump stations. In the food and beverage sector, where vibration control protects both product quality and filler machine accuracy, the coupling’s capacity to dampen torsional shock loading makes it a preferred choice. Chemical processing plants value the sealed tooth design because it prevents product contamination through grease ingress into process streams. In power generation — particularly at biomass and combined-cycle sites across England and Scotland — the coupling handles the demanding start-stop thermal cycling of auxiliary drives without fatigue failure over multi-year operational periods.

“We run a pump station serving three water treatment works in Wales. The GIICL couplings on our submersible pump motor drives have been in continuous service for over two years without any issue. Temperature swings here are significant in winter and the grease retention is clearly doing its job.”

“We specified the GIICL for a compressor drive on our North Sea offshore installation. The supplier provided full material traceability documentation and dimensional inspection reports within 48 hours — that kind of documentation turnaround is critical for offshore procurement. The coupling has performed without fault through two complete seasonal maintenance cycles.”

“As a conveyor OEM based in the Midlands, we have integrated the GIICL drum gear coupling into three of our standard drive configurations. The bore tolerance and keyway dimensions are consistently machined to specification — something that is not always the case with cheaper import alternatives. Our after-sales call rate on these drives has dropped to near zero since the switch.”

The manufacturing facility covers 55 mu of land with a dedicated production workshop of 12,000 square metres, housing 108 sets of precision production equipment — including CNC turning centres, gear hobbing machines, gear grinding equipment, coordinate measuring machines, and surface hardness testing instruments. Over two decades of focused production experience in gear-type couplings means the engineering team can assess application requirements at a technical level, not simply process orders.

Custom engineering services available to UK industrial buyers include: non-standard bore diameters and keyway specifications machined to customer drawings; nitriding and surface quenching treatment for high-cycle applications; special flange bolt circle configurations to match existing machinery; modified overall assembly lengths for restricted axial space conditions; paint or coating systems for corrosive environments including marine and offshore; and custom material upgrades such as stainless steel sleeves for food-grade applications. Engineering drawings and 3D model files are provided upon request to support customer integration into CAD assembly models.

For UK procurement teams with defined lead time constraints, pre-production material stock programmes can be discussed, and partial assembly with customer-supplied shafts can be arranged through authorised distributors. The company holds ISO 9001 quality management system certification, and all custom orders include documented inspection records aligned to the agreed specification.
