SWC-BF Standard Flex Flange Type Universal Coupling

Three-Axis Misalignment Tolerance

Angular offset up to 15°, radial parallel displacement, and axial movement are all handled simultaneously. No additional alignment hardware or precision shimming is required during installation — saving time and labour cost on-site.

Vibration and Shock Attenuation

The flexible polyurethane or rubber element acts as a torsional low-pass filter. Shock peaks generated by reciprocating compressors or conveyor start-up events are absorbed before they can reach adjacent bearings, seals, or gearbox internals.

Extended Operating Range

Nominal torque from 12.5 kN·m to 1,000 kN·m across ten size grades. A single product family covers light auxiliary drives and heavy industrial drivetrains, simplifying supplier management and spares stockholding for UK maintenance teams.

Rapid Bolt-On Installation

No specialist alignment tooling, no adhesives, no press-fit assembly. Both flanged hubs bolt directly to the shaft via a keyed bore connection. In-house maintenance teams across the UK consistently report installation times under three hours per assembly.

Dry-Running, Low-Maintenance Design

No routine lubrication is required under standard operating conditions. The flexible element resists ozone, moderate oil mist, and temperatures from -20 to +80 degrees C — a key advantage for UK plant where coupling access is restricted between scheduled shutdowns.

Custom Bore and Surface Options

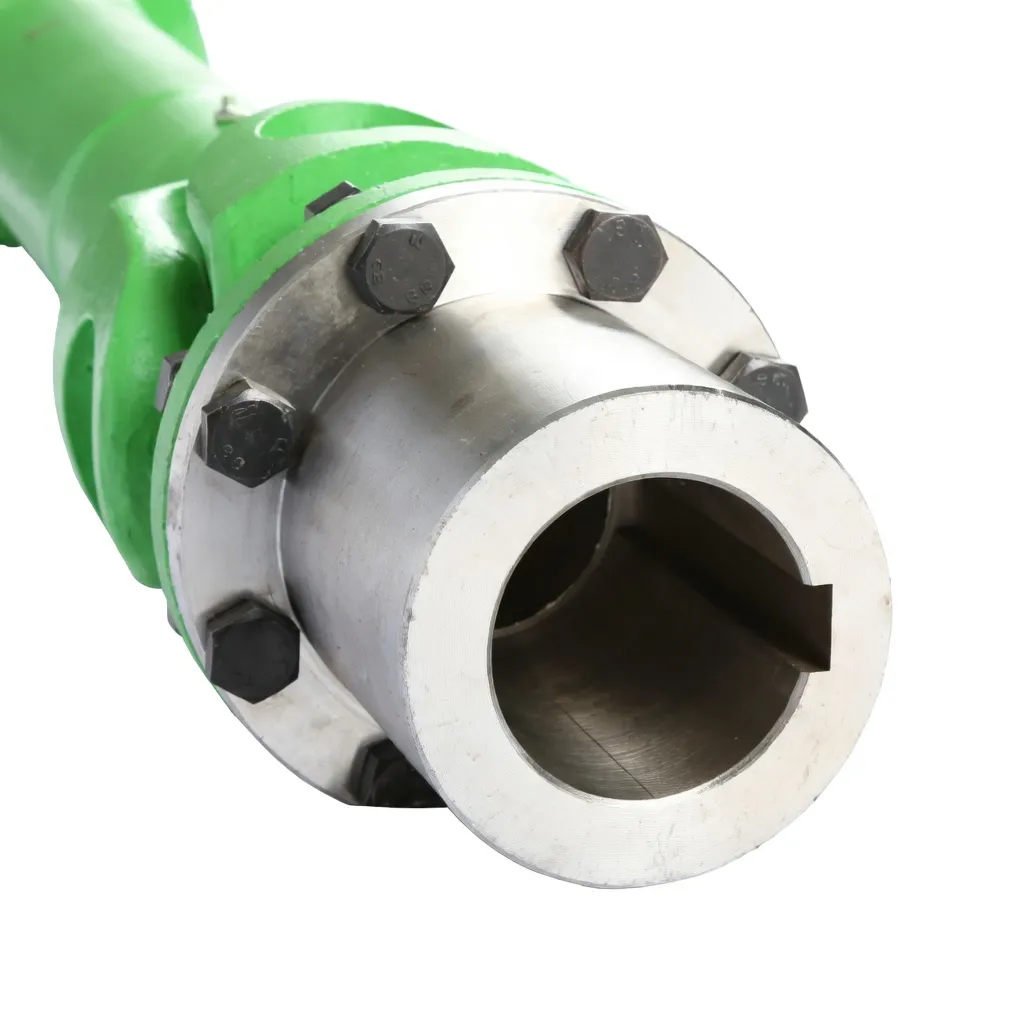

Hub bores are precision-machined to customer shaft diameters. Keyway profiles to DIN 6885 and BS 4235, special coatings for corrosive environments, and complete material certification packages are all available on request for UK project specifications.

Materials and Construction Quality

The flanged hubs are manufactured from high-tensile structural steel or ductile cast iron, selected according to the torque grade and service environment. For aggressive UK settings — offshore support vessels operating from Aberdeen, coastal chemical processing sites around Grangemouth, or marine dockyard machinery along the Thames Estuary — surface treatments including hot-dip galvanising, zinc-phosphate primer, or marine-grade epoxy coating are available to extend corrosion resistance across long service intervals.

The flexible element is moulded under controlled conditions from polyurethane or high-durability synthetic rubber, depending on the application temperature profile and chemical compatibility requirements. Both materials exhibit excellent fatigue resistance under cyclic torsional loading, maintaining their elastic properties and dimensional integrity across millions of flex cycles without creep or permanent set.

Operating Principle Explained

Torque enters through the driving-side flanged hub and passes directly into the flexible element, which deforms torsionally and transmits the load through to the driven-side hub. Because the element can flex in multiple planes, it naturally accommodates relative movement between the two shaft centrelines — whether that movement is angular, lateral, or axial. No additional thrust bearings, support brackets, or intermediate shafts are needed to handle the resultant forces; the flexible element manages them internally.

From an equipment protection standpoint, this architecture means that torsional vibration originating from the driving machine — whether a diesel engine, electric motor, or reciprocating compressor — is substantially attenuated before reaching the driven shaft. Machinery downstream runs smoother, quieter, and with measurably lower mechanical stress on rotating components, which directly translates to longer bearing and seal life in UK plant environments.

Background: Mersey Dock Process Engineering manages bulk material handling installations at a major logistics terminal on the River Mersey. Following the commissioning of two new conveyor systems in late 2022, the engineering team encountered repeated coupling failures on the primary drive shafts within the first six months of service. Investigation showed that foundation settlement across the steel mezzanine structure was creating angular misalignment in excess of what the original rigid couplings could absorb. Each coupling replacement event was costing the terminal an estimated £9,500 in parts, contractor labour, and lost throughput, and the failures were occurring every four to five months without exception.

Solution Adopted: The maintenance manager contacted the HZPT technical team with full shaft data, torque figures, and a description of the misalignment behaviour. After reviewing the drive specifications, the HZPT engineering team confirmed that two SWC315BF standard flex flange type universal coupling units — rated at 125 kN·m nominal torque with an angular tolerance of 15° — were the appropriate replacement. Custom bores were precision-machined to match the existing shaft diameters exactly. Both units were shipped with full dimensional inspection reports and material certificates within the agreed lead time. The Mersey Dock in-house team installed both couplings in a single morning shift without any specialist tooling or external contractor involvement.

Result: Twenty-two months after installation, both SWC315BF couplings remain in continuous operation with zero interventions. The terminal has reported no coupling-related downtime events since the change. The mechanical engineering team has subsequently updated the terminal’s standard coupling specification to include HZPT SWC-BF flex flange universal couplings for all new conveyor drive installations, and maintains two SWC315BF units in stock for rapid emergency deployment.

“

We fitted the SWC440BF on a paper mill conveyor drive in Fife in 2022 and the reduction in drivetrain noise was immediately obvious. No maintenance callouts on that section of the line in over two years. The custom bore service took days, not weeks — exactly the lead time we needed.

“

Price was sharp compared to domestic quotes, and the technical team confirmed the correct SWC250BF specification within a few hours of our enquiry. We’ve placed three repeat orders since the original purchase. It genuinely makes life easier when you know the supplier understands the product.

“

We replaced an obsolete imported coupling in our compressor skid using the SWC350BF after HZPT reverse-engineered the original dimensions from our photographs. Material certs arrived with the shipment and the bore was perfect first time. That kind of engineering support is what keeps us coming back.

Custom Capabilities for UK Projects: Precision bore machining to any shaft diameter · Keyways to BS 4235 and DIN 6885 · Offshore and marine-grade coating systems · Material traceability certification packs · Batch orders for maintenance stockholding · Replacement of obsolete imported coupling brands · Expedited production for breakdown emergencies
