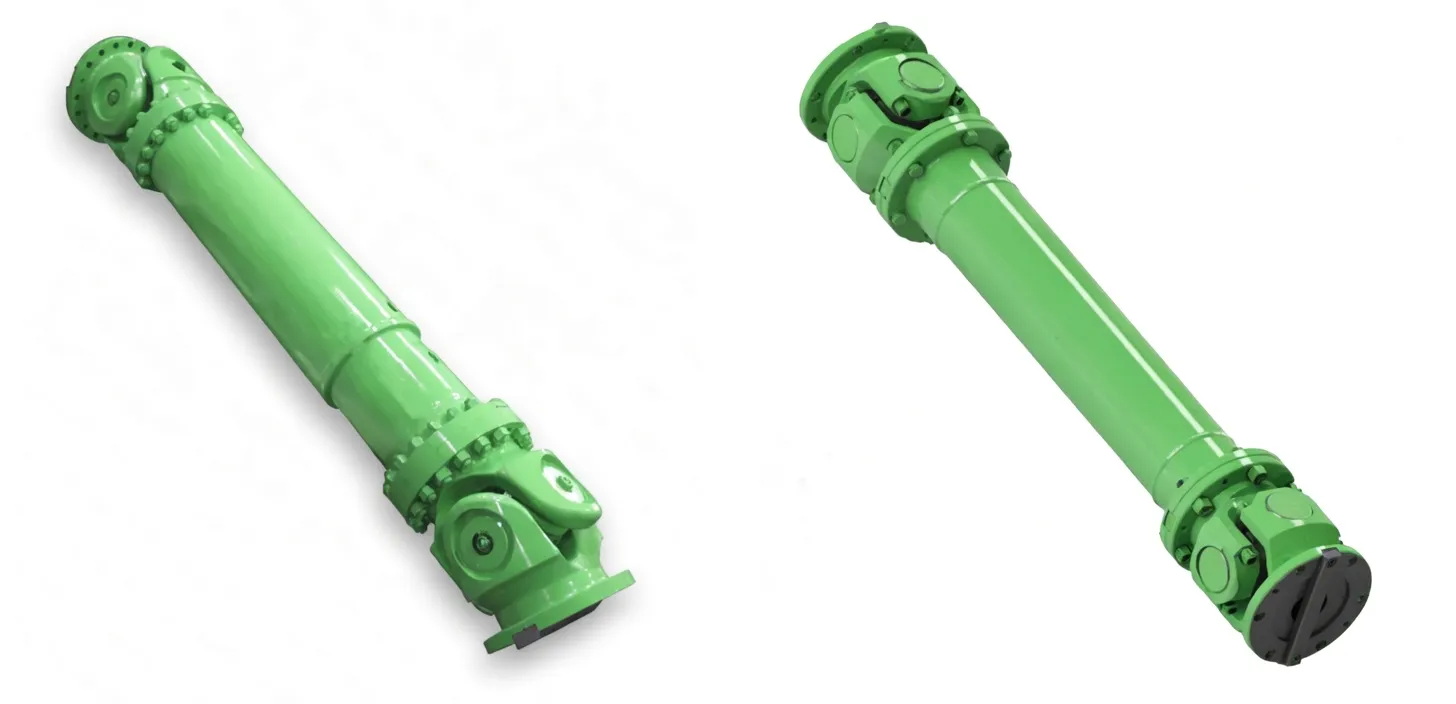

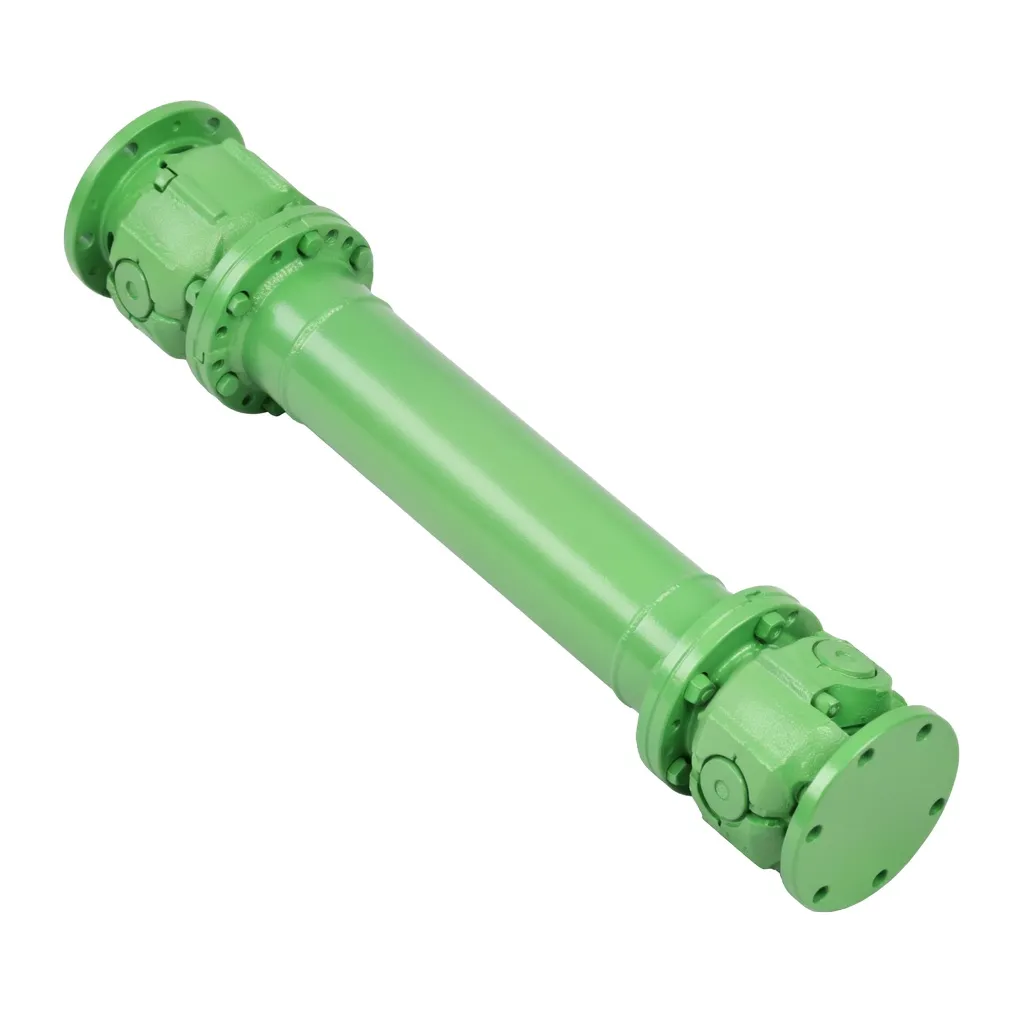

SWP-D Long Without Flex Type
Universal Joint Coupling
Nominal torque 16 kN·m through 1250 kN·m — double-joint Cardan engineering for UK heavy industry, steel, mining, paper and chemical drivetrains.
A Purpose-Built Coupling for Demanding UK Drivetrains
When two connected shafts refuse to sit in perfect alignment — whether through thermal growth, structural deflection, or the sheer practicality of retrofitting new equipment into existing UK plant layouts — the SWP-D long without flex type universal joint coupling steps in as a proven mechanical solution. Built around a symmetrical double-joint Cardan architecture, this coupling transmits rotational power across angular offsets of up to 10 degrees without introducing the velocity fluctuations that single-joint designs produce. The extended body length addresses a persistent challenge on British industrial sites: bridging the shaft gaps left by legacy equipment arrangements where relocating a motor or gearbox would demand expensive civil works. Rather than adding an elastomeric element to manage vibration, the SWP-D coupling instead achieves torsional stability through its rigid, all-steel construction — a deliberate engineering stance that suits continuous high-torque operations in UK rolling mills, aggregate conveyors, paper machine dryer sections, and chemical plant extruder drives. Produced in fifteen catalogue sizes from 160mm to 640mm tactical diameter, the range addresses everything from mid-duty process equipment up to the heaviest driveshafts in British steelworks.
Why UK Engineers Specify the SWP-D Coupling
Six performance characteristics that consistently influence purchasing decisions on British industrial sites.
Constant-Velocity Double-Joint Design
Two Cardan cross-joints positioned symmetrically on the intermediate shaft cancel out the angular velocity variation inherent in any single universal joint. The result is smooth, near-constant output speed — important for rolling mill pass lines and precision extruder drives in UK processing plants where torsional irregularity produces visible product defects.
Extended Installation Length
The long-body format spans shaft separations that short or standard universal coupling bodies simply cannot reach. British quarrying and aggregate plant engineers frequently encounter this challenge when retro-fitting variable-speed drives: the new motor sits further back than the original fixed-speed unit, leaving a gap the SWP-D universal joint coupling fills cleanly without structural alterations to the plant.
Rigid Construction Eliminates Resonance
Removing the elastomeric or disc-flex element creates a mechanically stiff torque path from flange to flange. There is no rubber to fatigue, no flex disc to crack, and no progressive stiffness change over service life. The coupling transmits torque at near-100% mechanical efficiency, helping to reduce energy consumption across long-running drivetrains in UK paper mills and steel plants.
Wide Torque Spectrum — Single Series
Fifteen sizes from SWP160D (16 kN·m) to SWP640D (1250 kN·m) means a single product family covers the entire range of UK industrial drivetrains — from chemical agitator shafts and light-duty construction plant up to the main drives of large-format rolling mills and ship-loading conveyor systems. Procurement teams value the consistency of one qualified supplier across multiple coupling sizes.
Proven Material Durability
Alloy steel forgings — typically 35CrMo or 40Cr — are normalised, through-hardened, and tempered before precision CNC machining to ensure the published fatigue torque (Tf) ratings accurately represent safe long-term service limits. Needle roller bearing cups are finished to H7 bore tolerances, controlling bearing-seat fit and resisting the fretting wear that shortens coupling life on high-cycle applications in British mining and aggregate equipment.
Bolt-Flange Serviceability
Flanged bolt connections across all sizes — from 6 bolts at M13 (SWP160D) to 22 bolts at M34 (SWP640D) — allow flange-to-flange disconnection and replacement without special tooling or precision shaft alignment equipment during the change. For UK plant maintenance teams working under tight planned shutdown windows, this translates directly to fewer hours of machine downtime per coupling service event.

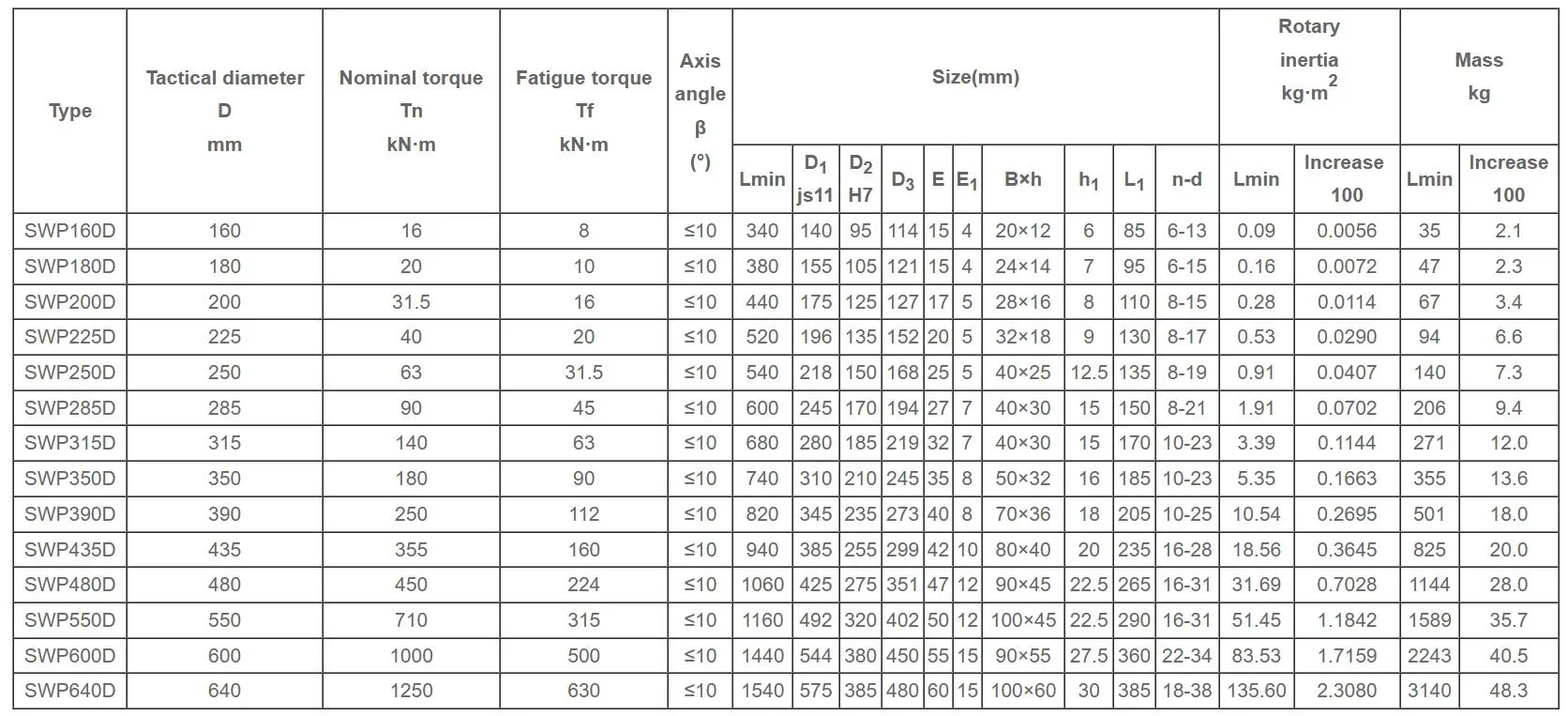

Full Dimensional & Torque Data — SWP-D Range
All dimensions in mm. Torque values in kN·m. Mass in kg. Custom lengths available on request.

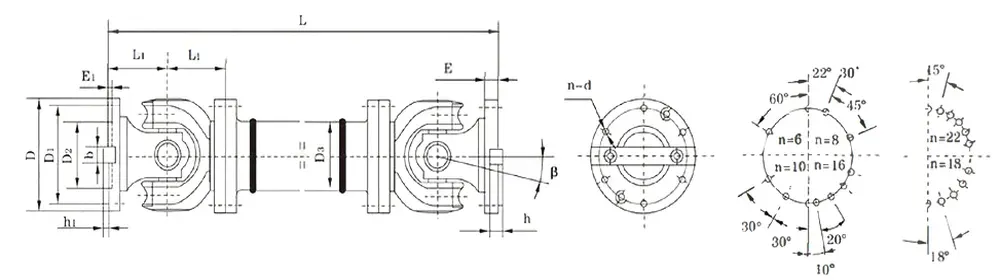

* Marking example: SWP315D × 900 — D = 315 mm, installation length L = 900 mm, D-type long without flex configuration.
How the SWP-D Coupling Works — Principle, Materials and UK Application Sectors
At its core, the SWP-D universal joint coupling relies on the Cardan (Hooke’s joint) principle extended to a double-joint arrangement. A forged steel intermediate shaft connects two cross-joint assemblies. Each cross-joint — a four-arm spider running in needle roller bearing cups — transmits torque while accommodating angular shaft offset. The angular acceleration errors of the input and output joints cancel when both are set to equal operating angles, producing the smooth velocity transmission characteristic the series is known for. Yoke arms, spiders, and flange bodies are forged from medium-carbon alloy steel (35CrMo or 40Cr), subjected to normalising, quench-hardening, and tempering. This heat-treatment sequence raises surface hardness while preserving toughness through the cross-section, ensuring the coupling withstands the combination of high mean torque and cyclic shock loading common in British steelworks and mining equipment. All bearing seats are precision ground to H7 fits to eliminate running clearance and prevent fretting corrosion at the spider journal-to-cup interface — a common failure mechanism on similar couplings from less controlled manufacturing sources.
The coupling is a strong match for UK industries where shaft geometry is constrained, torque is high, and service intervals need to be predictable. In South Wales and Sheffield steelworks, SWP-D universal joint couplings handle work roll and roughing mill main drives. Yorkshire and Derbyshire quarrying operations use the SWP250D to SWP390D range on primary crusher head shafts and conveyor tail drives. Scotland’s paper and pulp mills select SWP200D and SWP250D units for dryer section roll drives where torsional smoothness directly influences paper caliper uniformity. Chemical and plastics processing facilities across the West Midlands rely on SWP315D to SWP435D units to connect high-reduction gearboxes to twin-screw extruder shafts, where the misalignment tolerance of the universal joint coupling eliminates the need for costly gearbox repositioning.
Real-World Results from UK Industrial Deployments
The following outcomes reflect actual field performance reported by procurement and maintenance contacts at customer sites.
Case Study · South Wales · Flat-Rolled Steel
Driveline Change-Out Frequency Cut by 80% — SWP435D in a Hot Strip Mill Application
A flat-rolled steel producer in South Wales had been replacing the existing coupling on a hot strip mill drive roughly every five months, with each coupling change requiring a full 14-hour mill shutdown. The primary failure driver was the angular offset introduced by thermal growth of the mill stand housing at operating temperature — an offset that the previous coupling type was not rated to accommodate continuously. Following a switch to SWP435D universal joint couplings, the maintenance team recorded no coupling-related stoppages across a 26-month observation period. The estimated saving in downtime costs alone exceeded £240,000 over that window, not counting the labour and parts costs of the frequent replacements. Plant availability on that mill stand increased from 88% to 96.4%, and vibration levels at the drive motor bearing dropped measurably after each new coupling was fitted.
“
We’ve been fitting SWP315D couplings on three conveyor head drives at our Yorkshire aggregate site for almost two years now. The angular tolerance took care of a shaft alignment issue we’d been fighting since the original installation. No unplanned stoppages related to the couplings whatsoever — genuinely impressed with the build quality at that price point.
Andrew B. — Engineering Manager
Aggregate Processing, Yorkshire, UK
“
The SWP250D units for our dryer section in the Scottish mill arrived within the agreed lead time and were dimensionally spot-on. Our process team noticed a reduction in roll vibration signatures almost immediately. When we needed a non-standard bore on the repeat order, the engineering team came back with a drawing for approval within 24 hours — that kind of responsiveness matters a lot when you’re managing planned shutdowns.
Moira T. — Maintenance Planner
Paper & Pulp Manufacturing, Scotland, UK
“
We needed an SWP435D with a modified keyway and extended installation length for a twin-screw extruder retrofit at our West Midlands plant. HZPT produced a certified dimensional drawing, confirmed material traceability with an EN 10204 3.1 cert, and delivered inside four weeks. The coupling dropped straight in and the drive has been running trouble-free since commissioning seven months ago.
Paul R. — Projects Engineer
Chemical & Plastics Processing, West Midlands, UK
Custom Manufacturing & Direct Supply for UK Buyers
HZPT’s manufacturing site integrates the full production chain — drop-forging, CNC turning and boring, gear hobbing, heat treatment, CMM dimensional inspection, and surface coating — under a single roof. This vertical integration is what makes rapid-turnaround customisation possible. Rather than sourcing forgings externally and waiting weeks for delivery before machining can begin, HZPT’s in-house forge produces blanks to order, which move directly into the CNC machining cells. The result is shorter lead times on custom universal joint coupling specifications than most third-party distributors can achieve on stock items alone.
For UK procurement and maintenance engineers, the customisation options that matter most are: bore diameter modification to match legacy shaft dimensions, keyway profile changes to DIN or BS standards, installation length adjustment in 100mm increments beyond Lmin, alternative bolt circle drilling patterns for flange compatibility, and surface treatments including zinc phosphate primer, hard chrome plating, and stainless steel material substitution for wet or chemically aggressive environments. EN 10204 3.1 material certificates and full dimensional inspection reports are standard inclusions for regulated industries — nuclear-adjacent sites, offshore support, and food-grade processing plants in the UK routinely request these as part of their incoming goods procedure. With 29 coupling product series, over 580 standard specifications, and more than 18 years of transmission application experience, HZPT is equipped to handle everything from a single urgent replacement unit through to blanket purchase agreements with quarterly call-offs for British MRO distributors.
