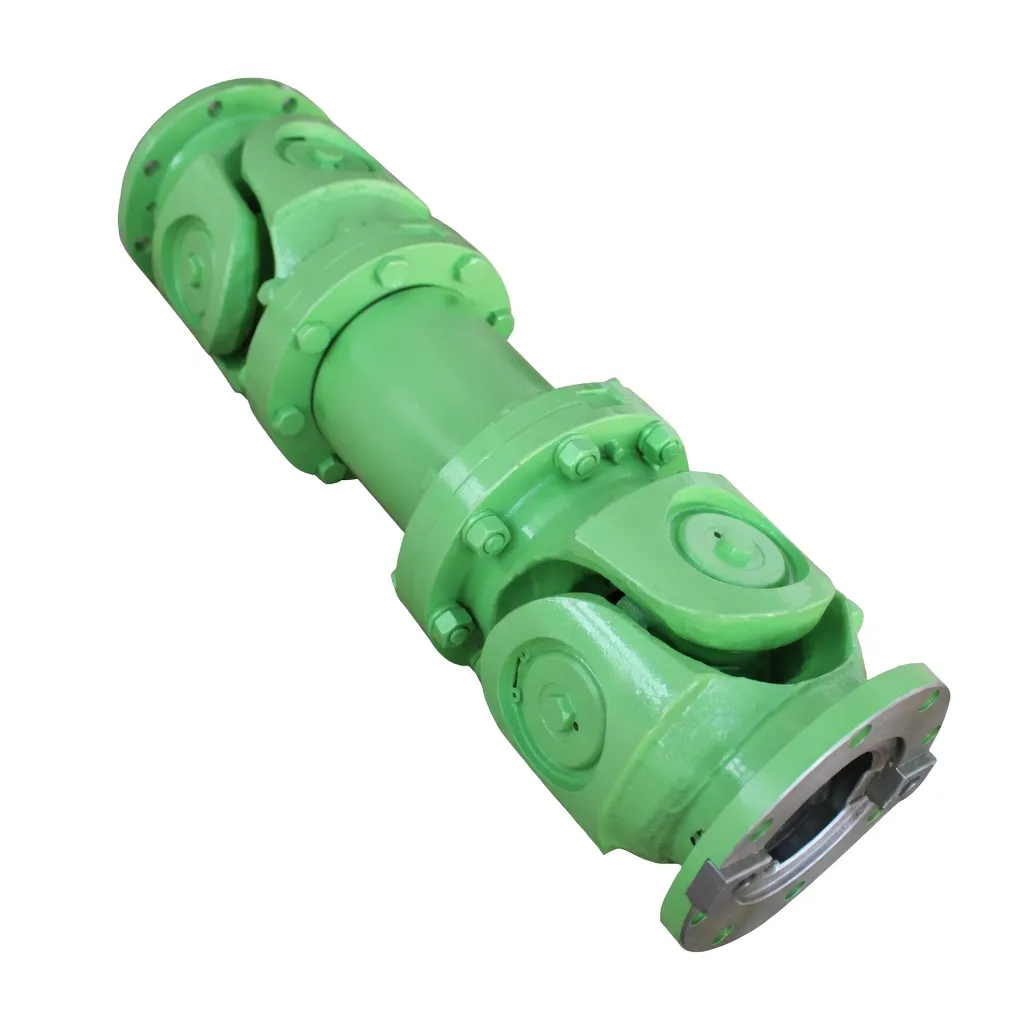

What Makes the SWP-G Universal Coupling Different?
The SWP-G super short flex type universal coupling represents a refined solution for power transmission engineering challenges that standard couplings simply cannot address. Built as a double universal joint, it integrates two independent bending elements within a single compact housing — allowing shaft misalignment angles of up to 5 degrees in operation, while the mechanical architecture of the double joint inherently compensates for velocity fluctuation that single-joint designs cannot suppress. In the steel rolling mills, paper manufacturing lines, and aggregate processing plants that are so common across the UK’s industrial heartlands — from Sheffield’s steel corridor to Yorkshire’s heavy fabrication sites — this coupling has proven its worth across decades of demanding service cycles. The SWP-G universal joint coupling is not simply a connector; it is an active mechanical buffer that absorbs torsional shocks, damps vibration peaks, and protects gearboxes and driven equipment from destructive load spikes. Its compact axial length — the defining characteristic of the G-type designation — makes it particularly well suited to retrofitting legacy drivetrains where installation space is constrained and downtime costs are high.

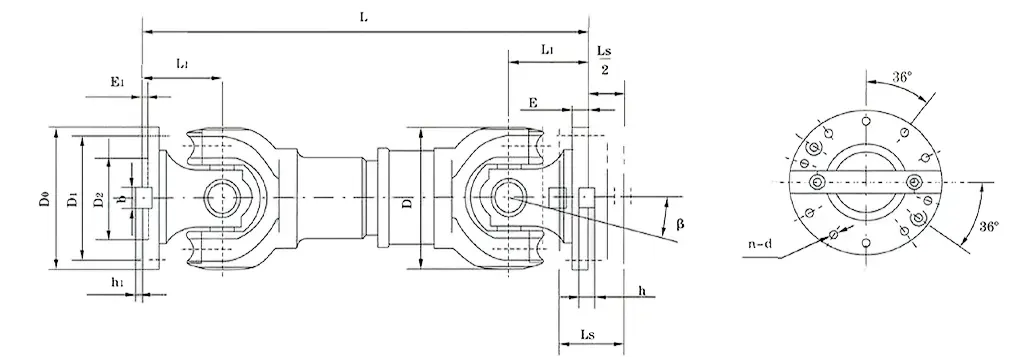

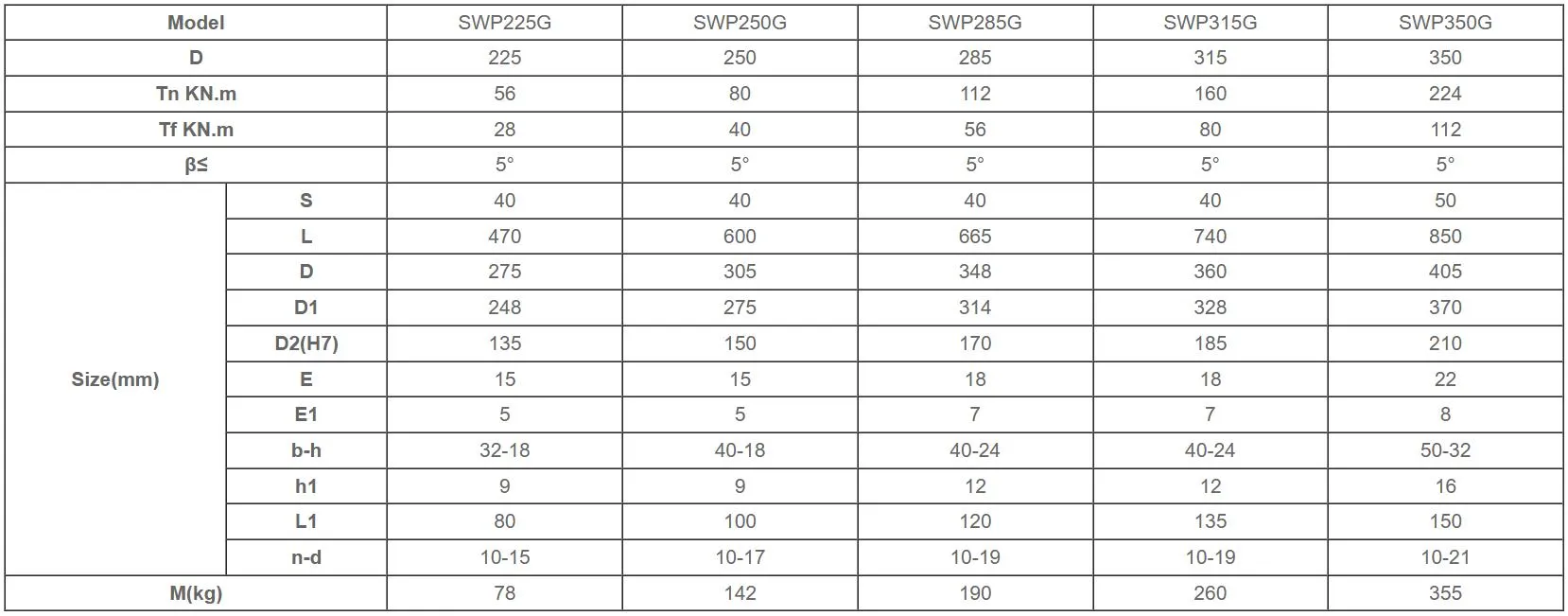

⚙ Technical Specifications & Dimensional Parameters
* Custom bore sizes, keyway profiles, and shaft configurations available upon request. Contact our engineering team for non-standard specifications.
Engineering Advantages That Deliver Real Results
Why UK procurement engineers specify the SWP-G over alternative solutions
Double-Joint Architecture
Two bending joints operating in tandem eliminate the velocity irregularity inherent in single-joint designs. Torque transmission remains smooth even at full operating angle, protecting downstream equipment from pulsation-induced fatigue.
Integrated Flex Element
The integral flexible disc pack absorbs torsional shock impulses at the moment of impact — a critical requirement in press lines, rolling mills, and crusher drives where load reversals are frequent and sudden. This dramatically extends gearbox and motor bearing life.
Ultra-Compact Axial Profile
The G-type designation specifically denotes the shortened overall length — a decisive advantage when retrofitting within existing machine frames. Plant engineers across the UK frequently cite the SWP-G’s compact footprint as the primary selection criterion when space envelopes are fixed.
Heavy-Duty Material Construction
Forged alloy steel yokes, precision-machined bearing cups, and high-tensile needle roller assemblies characterise every SWP-G unit. Bronze-backed bushings in critical wear zones deliver service intervals that comfortably exceed those of lighter cast alternatives common in lower-cost couplings.
Working Principle, Materials & Industrial Applications
⚙ Operating Principle
The SWP-G super short flex type universal coupling transmits rotary motion between shafts that are angularly offset. Within the double-joint assembly, each Hooke’s joint generates a sinusoidal velocity variation; by positioning the two joints 90 degrees out of phase relative to each other, the velocity errors cancel — producing a constant output speed regardless of the bend angle. The flex element bridges the two yoke assemblies and accommodates residual misalignment while simultaneously acting as a torsional spring-damper. During torque transients, elastic deflection stores and releases energy, smoothing the force front before it reaches the driven machine. This is why the SWP-G universal coupling is specified wherever cyclic loading or frequent start-stop cycles would otherwise cause premature drivetrain fatigue.
🔨 Material Composition
Yoke bodies are drop-forged from 42CrMo4 alloy steel — quenched and tempered to 28–34 HRC — delivering a yield strength typically exceeding 900 MPa. Cross-trunnion journals are precision-ground to h6 tolerances and case-hardened to 58–62 HRC to resist wear under needle roller contact. Flexible disc packs are manufactured from spring-grade stainless steel, providing fatigue life in excess of 10 million cycles at rated torque. All mating flanges are machined to H7 bore tolerances ensuring concentricity within 0.02 mm. External surfaces receive a corrosion-inhibiting phosphate-plus-epoxy coating system appropriate for the humid, salt-laden atmospheric conditions prevalent at coastal and marine facilities across the United Kingdom.
🏭 Typical Application Sectors
- Steel & Rolling Mills — main roll drive, edger drives, pinch roll lines
- Mining & Quarrying — cone crusher drives, conveyor head pulleys, screen drives
- Paper & Pulp — press section, dryer section roll drives
- Construction Machinery — concrete mixer drums, asphalt plant drives
- Agricultural Processing — grain auger drives, baler PTO connections
- Water Treatment — pump and agitator shaft couplings
- Marine & Offshore UK — auxiliary equipment drives, deck machinery
Customer Success: Real-World Deployment
How a South Yorkshire steel processor eliminated chronic drivetrain failures
🏮 Case Study — Rotherham Cold Strip Rolling Mill, South Yorkshire, UK
Challenge: A medium-sized cold-strip rolling facility in Rotherham was experiencing coupling failures on their No.3 finishing mill stand at intervals of just 9–11 weeks. The original OEM coupling — a standard single-joint design — was undersized for the peak torque loads generated during strip threading and gauge changes. Each failure caused an average of 14 hours unplanned downtime at a direct cost of approximately £28,000 per event. Over 18 months the maintenance team replaced the coupling six times, accumulating over £168,000 in combined parts, labour, and lost production costs.
Solution: Following a drivetrain audit, the facility’s chief mechanical engineer specified two units of SWP315G universal couplings — rated at 160 kN·m nominal torque with a fatigue torque of 80 kN·m — replacing the single-joint predecessors. The compact axial profile of the SWP-G series eliminated the need for any modification to the existing mill housing. The double-joint design resolved the velocity pulsation that had been creating cyclic loading on the roll neck bearings, a secondary failure mode that had gone undiagnosed for months.
Outcome: Eighteen months post-installation, neither coupling has required replacement or unscheduled maintenance. The facility estimates cumulative savings of over £190,000 in avoided downtime and parts cost. Roll neck bearing replacement intervals have also extended by approximately 40%, providing an additional indirect saving. The engineering team now specifies the SWP-G super short flex type universal coupling as the standard for all future rolling mill drive upgrades at the site.
⭐ What UK Engineers Are Saying
“We were sceptical about sourcing a universal coupling from outside our traditional UK supply chain, but the SWP285G arrived exactly to drawing, with a full material certificate. It’s been running on our aggregate conveyor drive for over a year without a single issue. The price per unit was genuinely competitive against European alternatives — probably 18% cheaper when you factor in lead time.”
— D. Hargreaves, Maintenance Manager
Quarrying & Aggregates, West Midlands, UK
“The SWP-G universal coupling solved a vibration problem that two different UK coupling suppliers had failed to diagnose correctly over three years. The double-joint design simply eliminates the pulsation at source. Our paper machine press section has been running smoother than it has in a decade. Technical support from the manufacturer’s team was responsive and genuinely knowledgeable.”
— S. MacAllister, Principal Engineer
Paper & Board Manufacturing, Aberdeenshire, Scotland
“We needed a non-standard bore diameter and a modified keyway profile on two SWP225G couplings for a bespoke cement plant drive. The engineering team turned around a fully certified, dimensionally-checked custom pair within six weeks. The quality of the machining is excellent — we measured bore concentricity at under 0.015 mm. These will be our go-to supplier for flex universal couplings going forward.”
— R. Patel, Procurement Lead
Heavy Construction Materials, East Midlands, UK
Factory & Custom Engineering Capability
HZPT Transmission Machinery operates two dedicated manufacturing facilities with a combined workforce of over 200 specialist engineers and technicians. Fixed asset investment exceeds 15 million Yuan, underpinning a CNC machining capacity that spans turning centres, gear hobbers, jig-grinding machines, and co-ordinate measuring equipment. Every SWP-G super short flex type universal coupling produced leaves the factory with a dimensional inspection report and, on request, a full material traceability certificate traceable to mill heat number.
Beyond standard catalogue sizes, the engineering team routinely designs and manufactures non-standard variants to client specification. Custom capabilities include modified overall lengths (the SWP-G designation with suffix, e.g. SWP315GX620, denotes a specific installation length), alternative bore diameters and keyway profiles, modified flange bolt patterns for fitment to existing equipment, surface treatment upgrades including hot-dip galvanising for marine UK environments, and special torque ratings engineered for high-cycle shock load applications. Enquiries from engineering consultancies and OEM manufacturers are particularly welcome — our team is experienced in supporting design-stage integration of the SWP-G universal coupling into new machine platforms.
